Adaptive SoC Prototyping: Validate Before You Integrate
Bring up complex Adaptive SoC platforms step by step and establish a reproducible baseline for further development.
A new Adaptive SoC platform brings together the processing system, memory, NoC, I/O and eventually the target application. Integrating all of these areas at once also increases the number of possible sources of error.
The TE0960 demonstrates a practical alternative: start with a minimal AMD Vivado design and extend the hardware platform in controlled steps.
Practical Example: From New Hardware to a Reproducible Prototype

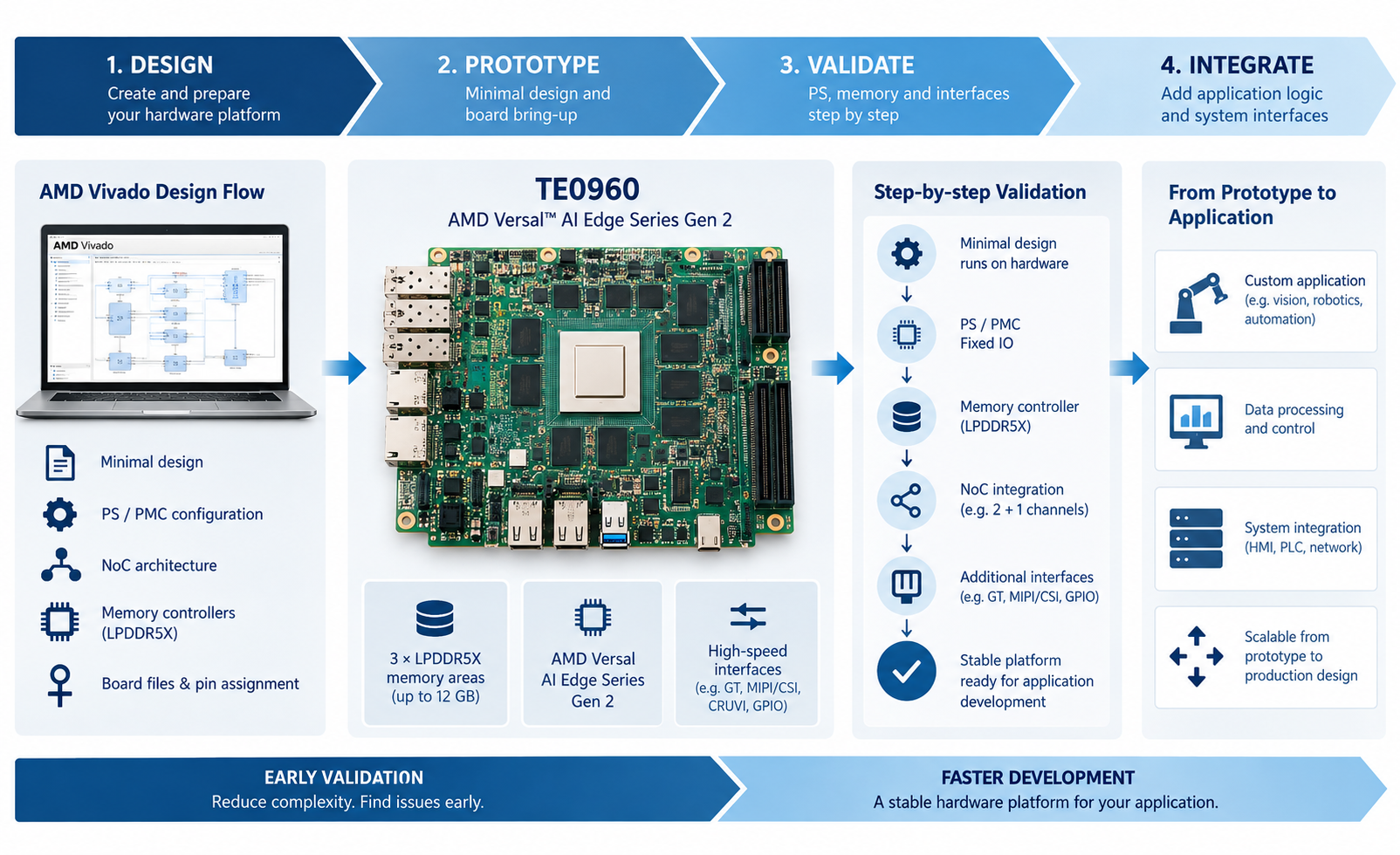

This example is based on the hardware bring-up of the TE0960 with AMD Versal™ AI Edge Series Gen 2. The first objective is not the finished application, but a defined and reproducible baseline for further development.
Start with a Minimal Design
Initial bring-up focuses on the fundamental hardware configuration.
Instead of integrating application logic and every available interface at the same time, development starts with a minimal AMD Vivado design. This allows the basic hardware configuration to be evaluated separately from later application functions.
A first minimal design for the TE0960 has already been successfully created with AMD Vivado 2026.1.
Map the Physical Hardware into the Design
Board files connect the logical Vivado design with the resources available on the physical board.
For the TE0960, the PS/PMC fixed I/O configuration is defined according to the hardware design. Memory controllers, pinout and clock sources also have to match the physical implementation.
This creates a defined configuration that subsequent designs can build on reproducibly.
Integrate Memory and NoC Step by Step
The memory architecture demonstrates why incremental bring-up matters.
The TE0960 provides three 32-bit LPDDR5 memory areas. The current board-file development represents them through three memory-controller groups.
This exposes a concrete integration task: in the current implementation, all three memory channels cannot be configured within a single NoC2 IP instance. The additional channel therefore has to be integrated separately into the architecture.
Dependencies like this can be addressed early, before additional application logic makes system-level debugging more complex.
Add the Application Afterwards
Once the basic platform is defined, further resources can be introduced in controlled steps.
For the TE0960, additional interfaces and GPIO functionality are among the next integration steps. The validated hardware baseline can then be extended with the actual target application.
Initial hardware bring-up therefore becomes a structured path toward a development platform for more complex system designs.
What Can Developers take away?
Limit complexity early.
A minimal design reduces the number of system components that have to be debugged simultaneously during initial hardware bring-up.
Make board configuration reproducible.
Board files map hardware resources, interfaces and pinout into the AMD Vivado board flow and establish a defined baseline for subsequent designs.
Do not treat memory in isolation.
Memory controllers, NoC, pinout and clocking form part of the same system architecture and should be considered together early in development.
Add application logic later.
Additional interfaces and application functions are introduced after the fundamental hardware platform has established a clear and reproducible baseline. Prototyping therefore becomes more than getting the hardware to run for the first time. It provides a structured path toward a reproducible system design.
