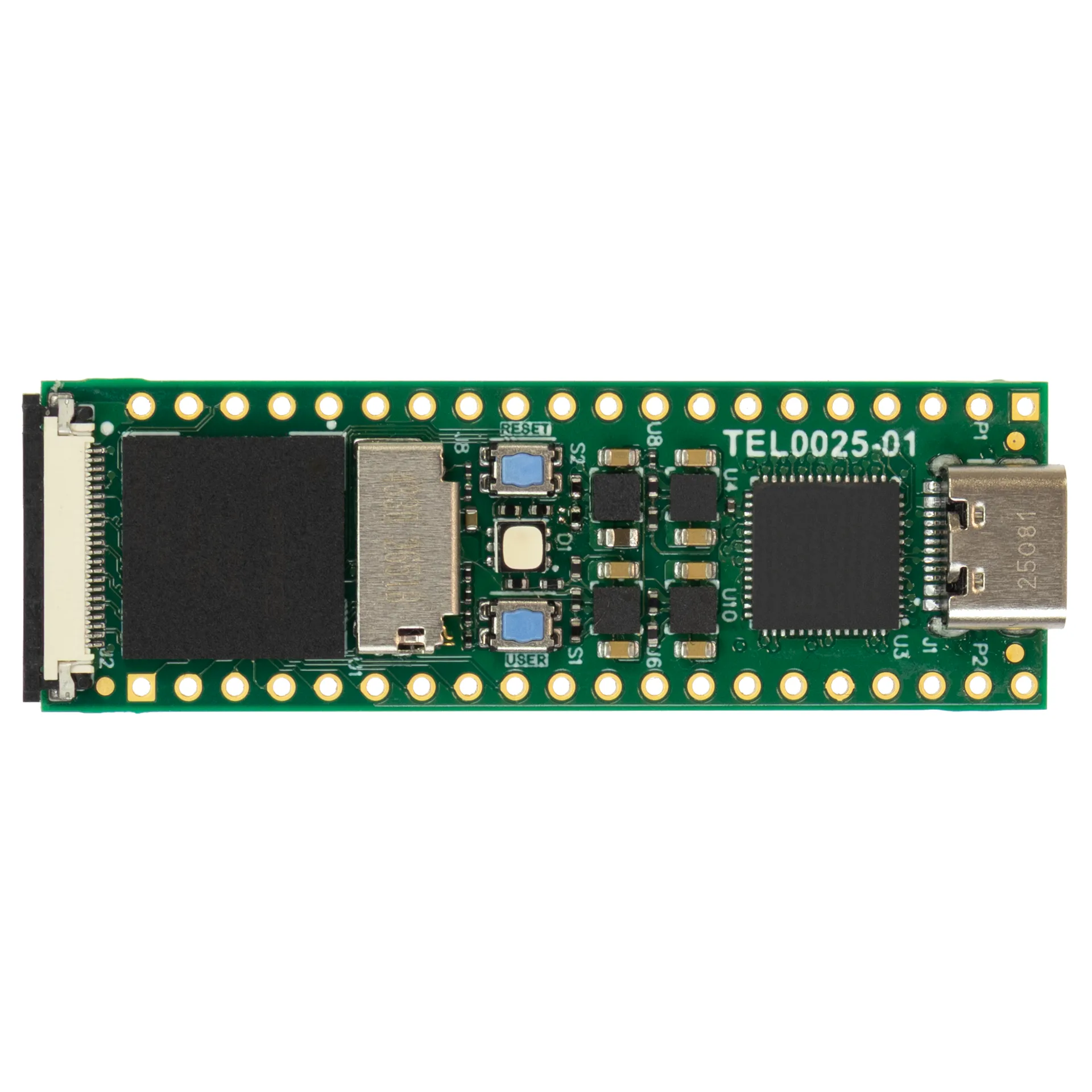

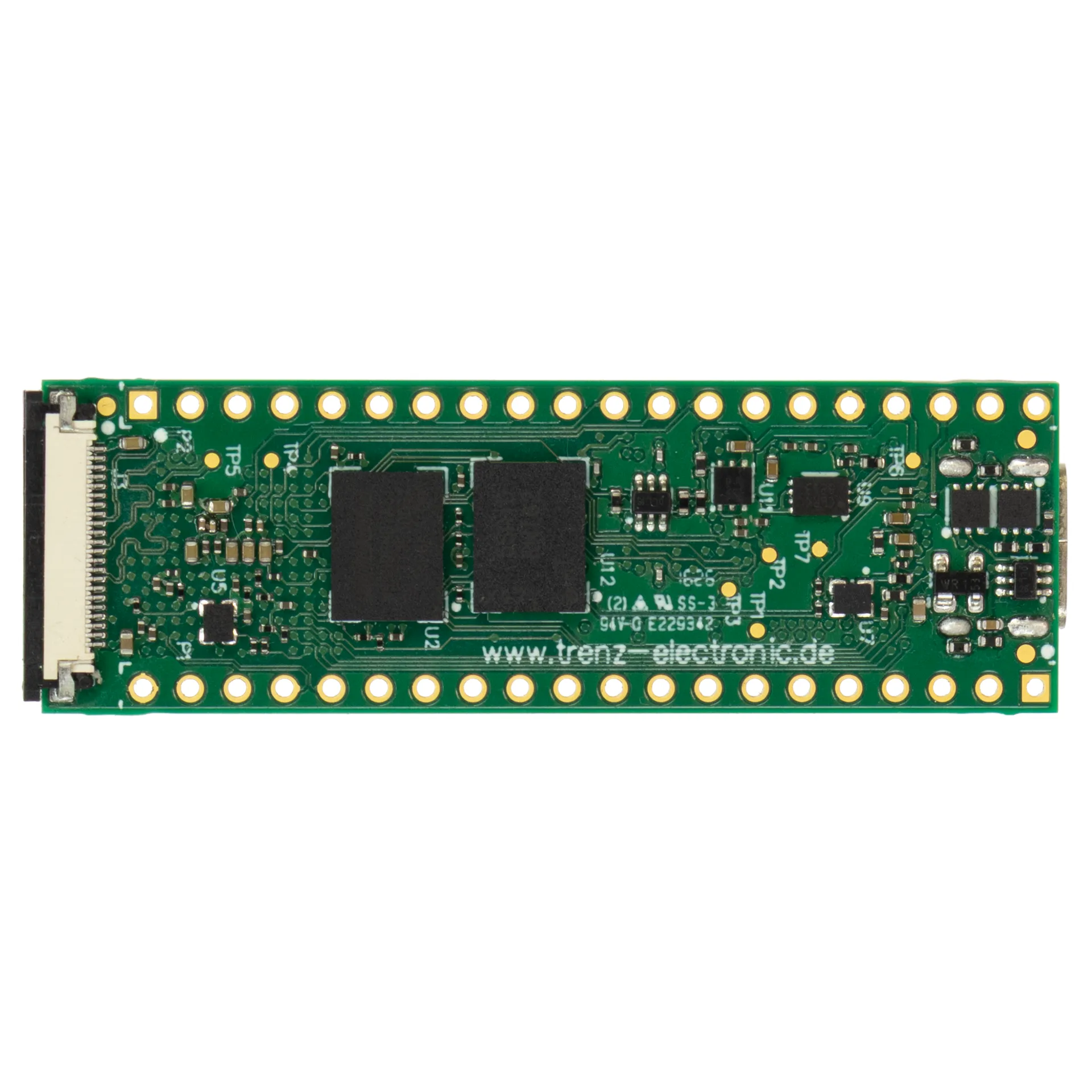

Lattice Certus-NX
Price upon request
Possible to order, delivery time on request.
Article number:
TEL0025-01-ANM-1-A
Stock:
0
Product information "Lattice Certus-NX"
Eigenschaften
- SoC
- Lattice Certus-NX LFD2NX-40-7BG196I
- Lattice Certus-NX LFD2NX-40-7BG196I
- RAM/Speicher
- 32 MByte HyperRAM
- 32 MByte QSPI Flash
- On Board
- 2x CSI-2 FPC connectors
- Dimension
- 1.8 cm x 5.5 cm
Scope of Delivery
- 1 x TEL0025-01-ANM-1-A Lattice Certus-NX LFD2NX-40-7BG196I
Additional Information
- Manufacturer's article number: TEL0025-01-ANM-1-A
- Support Forum
TEL0025 - 1.79 x 5.5cm Lattice Certus-NX FPGA module
- tbd - Wiki with TRM, reference projects, application notes and more
- tbd - Technical Reference Manual
- tbd - Reference Design Description
- tbd - Firmware Description
Links
- Shop TEL0025 - contains prices, order number, content ...
- tbd - various reference designs, schematics, hardware designs and more
- Pinout/Tracelength Table - illustration of pinout, tracelength and cross reference Information of modules with different baseboards
