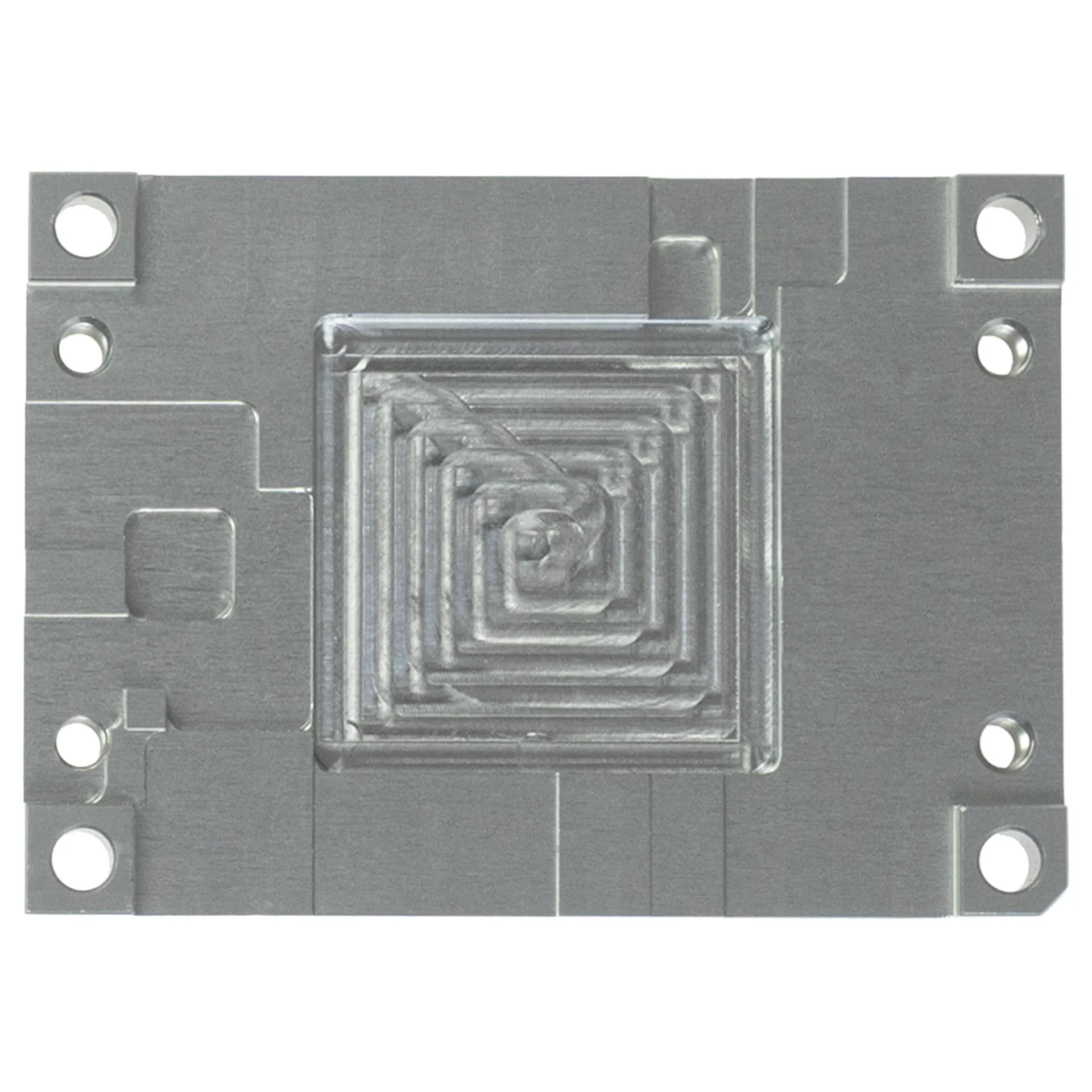

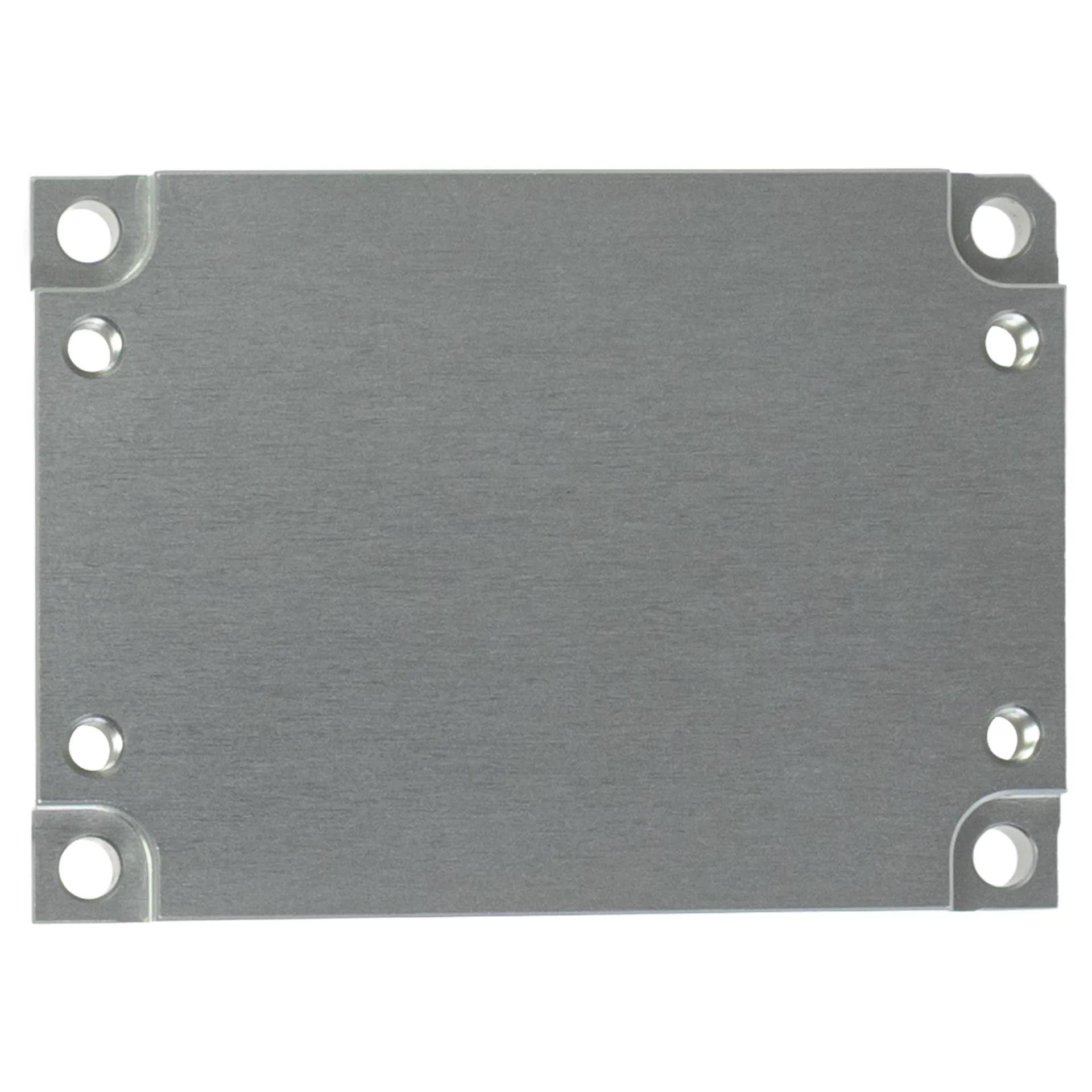

Heat Spreader for AM0010-02

US$34.51

Possible to order, delivery time on request.

Article number: 34857-01

Stock: 0

Quantity	Unit price
To 9	US$34.51
From 10	US$31.06
From 25	US$29.33
From 50	US$27.61
From 100	US$25.88
From 250	US$24.16
From 500	US$22.43
From 1000	US$20.71

Product information "Heat Spreader for AM0010-02"

The predecessor of this article is 34857-01.

Cooling solution especially desgined for Trenz Electronic MPSoC AM0010-02.

Important note: This heat spreader requires a so-called gapfiller. For this reason it is recommended to have the heat spreader installed here. Please leave a note in the comment box at the end of your order.

Order number: 34857-01
Flat
Custom-fit for module AM0010-02
Surface treatment: ELOXAL colourless, natural
Mechanical drawing available
Please check the schematic drawing for the exact dimensions of the heat spreader (see Downloads)
Compatible with Passive Cooling 34933-01
Compatible with AActive Cooling 34933-02

Scope of Delivery

1 x KK0803-03A heat spreader for MPSoC module AM0010-02.
4 x screws M3x4 mm
4 x screws M3x8 mm
4 x bolts M3x5 mm

Additional Information

Manufacturer's article number: 34857-01
Overview Andromeda Module
Download Technical Drawing
Trenz Electronic Wiki Cooling Solutions Overview
Support Forum

Properties "Heat Spreader for AM0010-02"

Properties

Compatible with:	AM0010-02

Data according to manufacturer. Errors and changes reserved.
